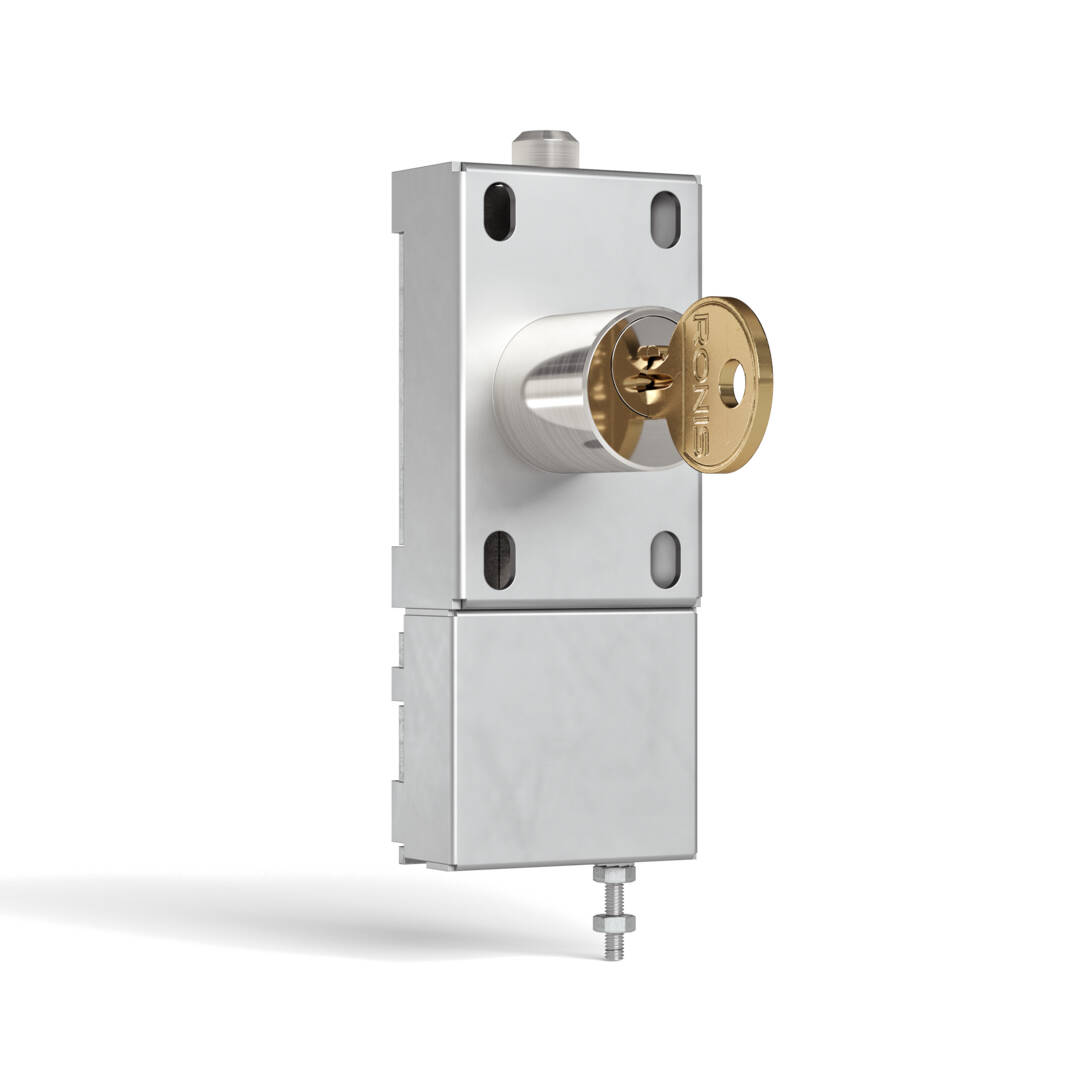

We offer a comprehensive range of ELN Electrical bolt locks, with options on the number of keys required to control one or more bolts.Our range supports the requirement for oneor two cylinders that control one bolt, usually used to control disconnectors or earthing switches. We offer two options with the bolt position (bolt in or bolt out) and starting position of key (Key captive or Key free).
| Standard Finish | Nickel |
| Standard Housing Material | Stainless Steel 304L |
| Bolt Distance (mm) | 12 |
| Assembly Information | This safety lock should be installed by a competent and qualified person, after reading and understanding the following instructions: 1 - Use anti-tamper fixings according to your application (maximum torque 5 N.m) 2 - The locks should be mounted in a non-corrosive environment and compatible with IP indicators 3 - Maximum torque while turning the key: 5 N.m 4 - The key should not be placed under stress. 5 - A bad alignment of the strike or in the course of the bolt may cause malfunction or blocking. 6 - Lubricate the clinder with CK Dry Power Graphite once the product has been assembled. 7 - In case of installing an electromechanical lock, make sure that the power is off before carrying out the wiring. |
| Voltage Range | Max 230V |
| Voltage Type | AC |
