The 72220 central locking system allows you to remove and replace the lock barrel while retaining the body itself. It is used in conjunction with a locking bar, providing a centralised locking source for all drawers on the cabinet.
It is built from high quality materials made from Mazak offering a robust solution with a proven track record of offering a long life cycle. The core itself utilises Wafer Technology, providing affordable security for your application.
We offer a wide range of wafer central locking systems to suit the market requirements. To help with your assembly process, we offer a Horseshoe Clip fixing which ensures an efficient and effective installation.
Offices, Education, Retail, Storage, Metal Furniture
| Security Type: | Wafer System |
| Available Key Series | SH, SM |
| MKS Possibilities | Master Key |
| Available Lock Fixings | Horseshoe Clip |
| Removable Barrel | Yes |
| Standard Cam Family | Fixed |
| Standard Material | Zamak |
| Standard Finish | Bright Nickel |
| Number of Keys | 2 |

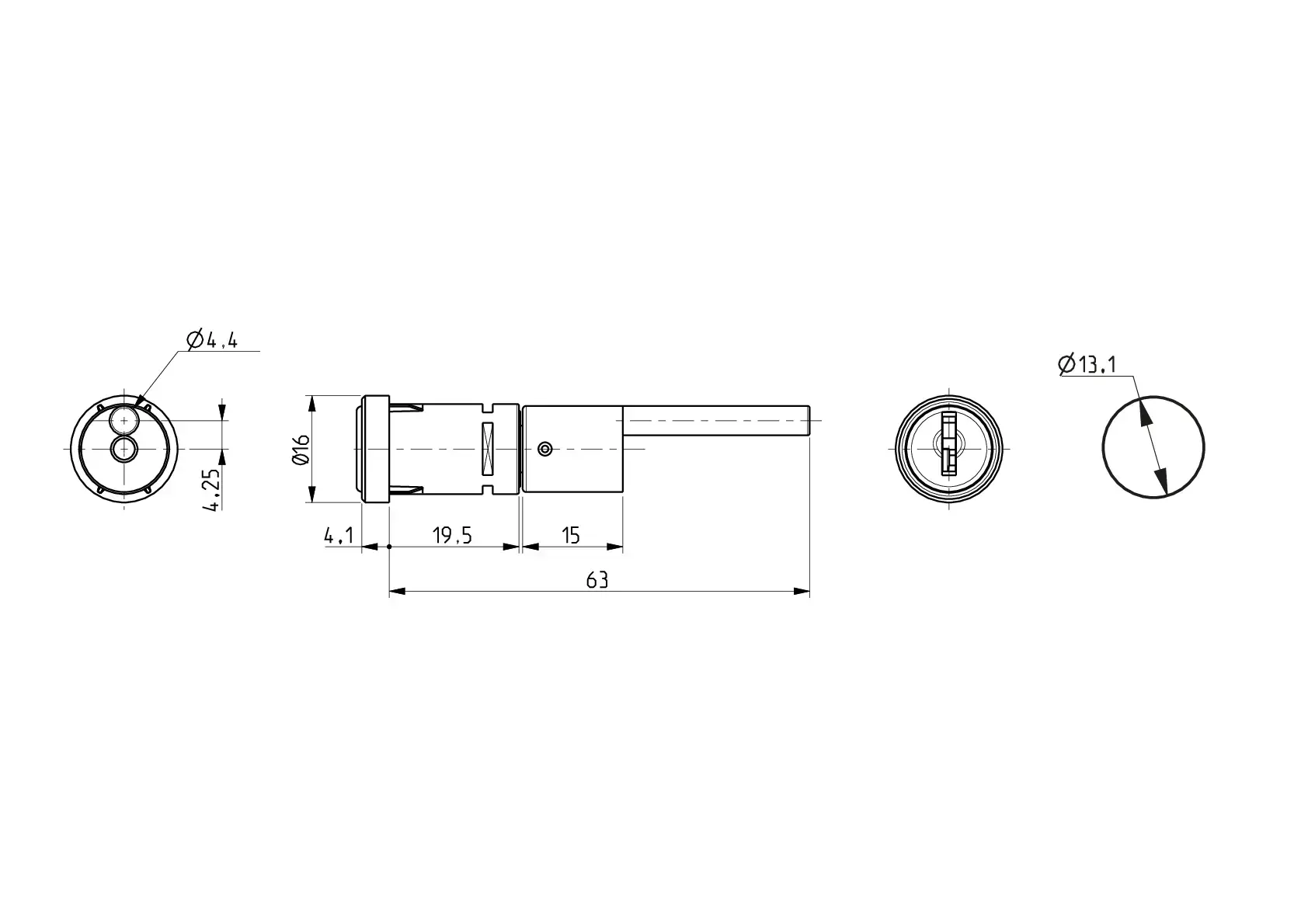

| Body Diameter B (mm) | 16.0 |
| Body Length | 19.50 |
| Full Length H (mm) | 63.00 |
