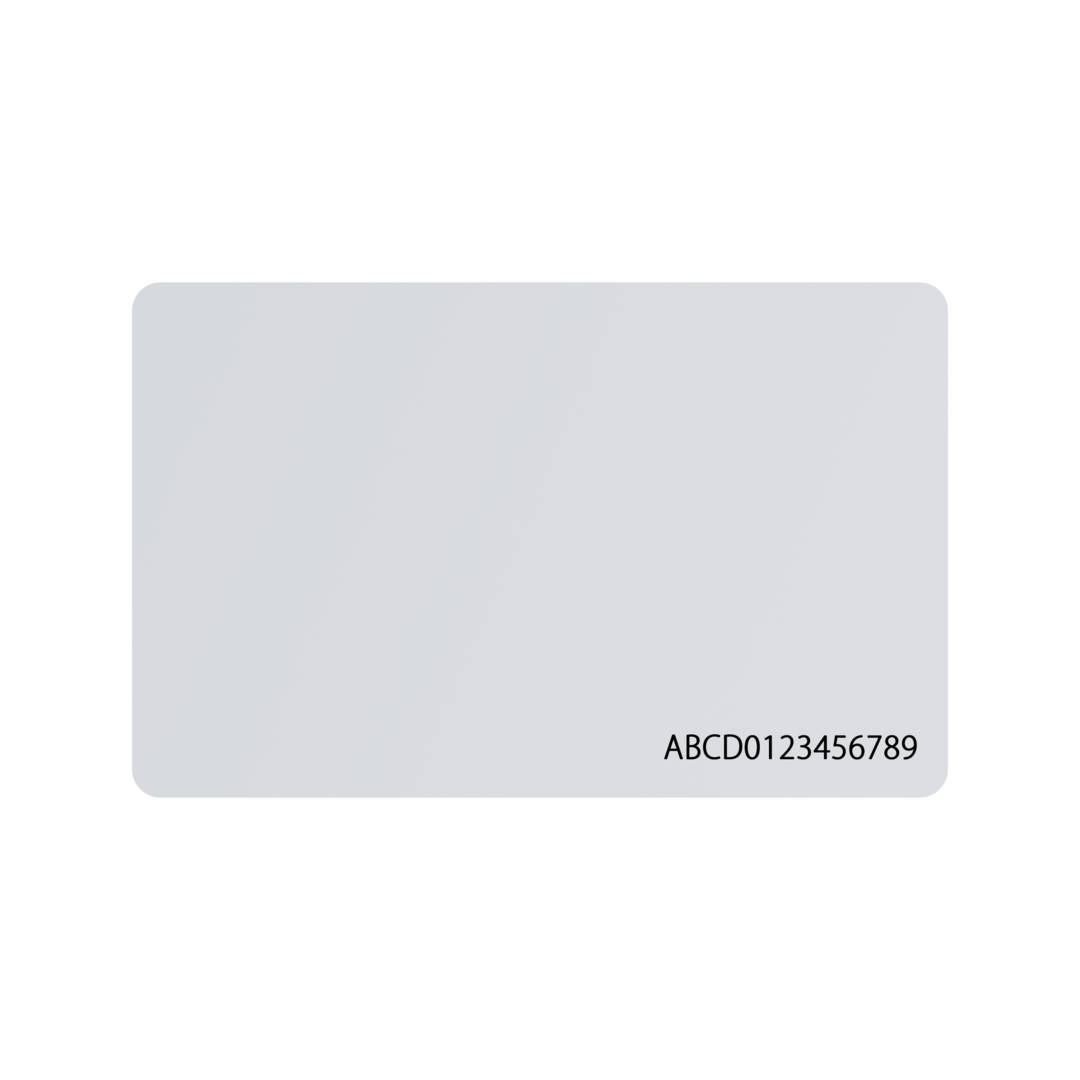

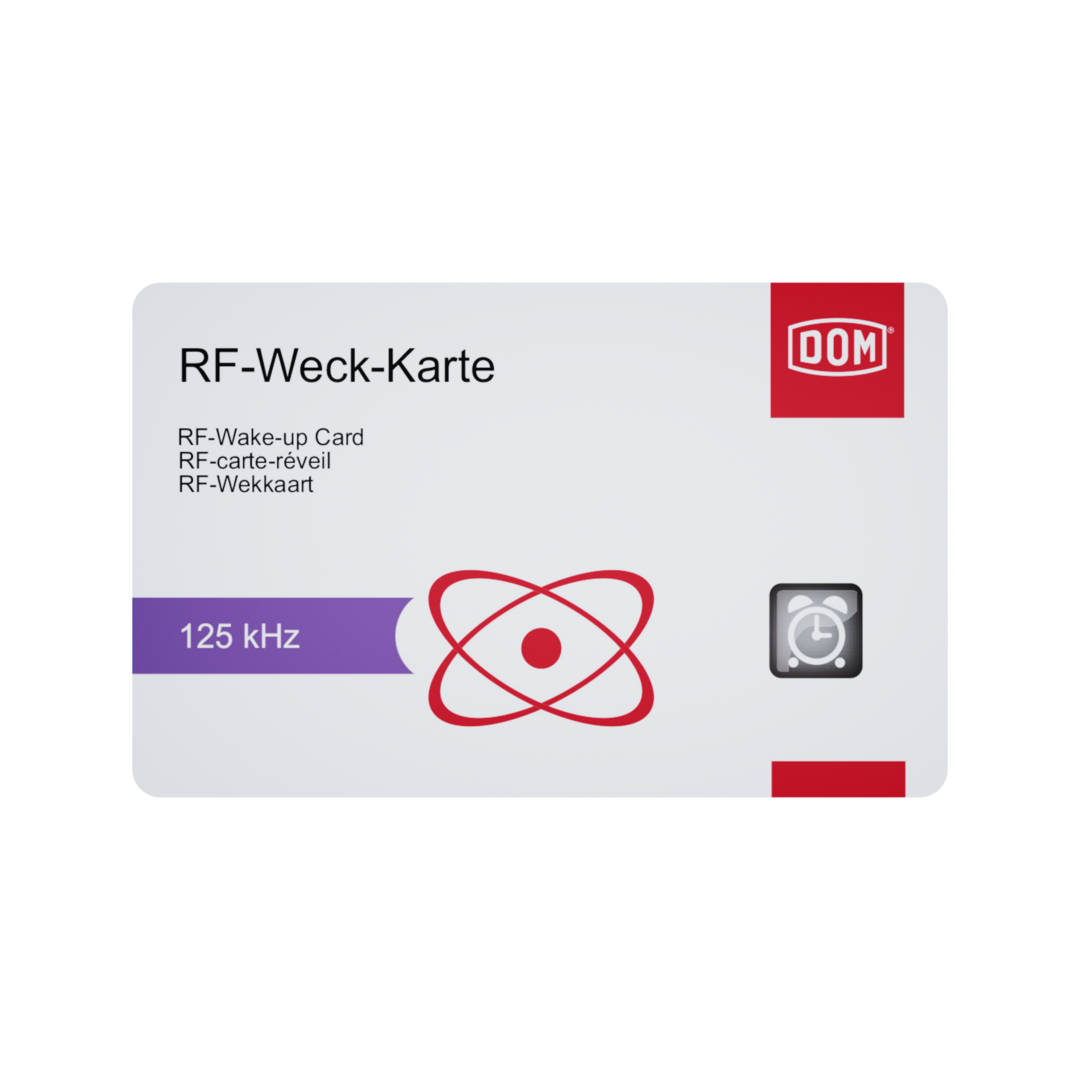

RF Wake Up Card

About

The RF alarm card is used to wake up the radio interface in the end devices so that you can communicate with them, in software programming mode, with your laptop and via a USB radio stick. This enables battery-saving operation.

Features & Benefits

  • Encryption possible with Hitag S Transponder only.
RFID Mifare 13.56mHz
IP54: protection from limited dust ingress and against water splashed from all directions; limited water ingress permitted and shall have no harmful effect

Suggested application of use

Airports, Education, Financial, Homes, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Plants, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Fire ResistantNone
Water ResistantYes
Anti Drill ProtectionN/A
ModularNo
Standard Warranty1 Year
Communication TechnologyRFID 125 kHz, Mifare RFID 13.56 MHz
User Identification TechnologyRFID 125 kHz, Mifare RFID 13.56 MHz

Ingress Protection RatingIP54

Surface FinishWhite
Data EncryptionAES, AES-128 Bit, Crypto-1, ISO 14443A, OSS, DES, 3DES
Operating Temperature (Celsius)-25° to 55°
