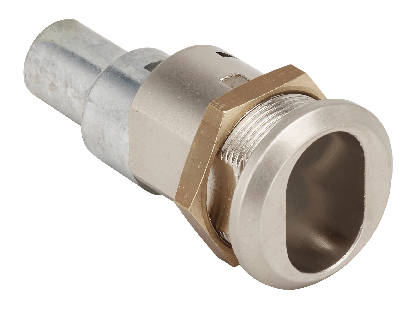

The 424105 central locking system allows you to remove and replace the lock barrel while retaining the body itself. It is used in conjunction with a locking bar, providing a centralised locking source for all drawers on the cabinet.

Compatible with the RONIS Ultra Track anti-tilt system.

The interchangeable barrels also help save you money since the entire lock doesn't need replacing. Simply order a new core with your chosen security type and install it directly into your existing lock.

It can also be integrated into new or existing Master Key systems where required.

It is built from high quality materials made from Mazak offering a robust solution with a proven track record of offering a long life cycle. Compatible with a range of inserts and technologies, it will meet all your requirements.

We offer a wide range of wafer and pin central locking systems to suit the market requirements. To help with your assembly process, we offer either a Horseshoe Clip or a Brass Nut fixing which ensures an efficient and effective installation.

Features & Benefits

  • Removable barrels provides you with maximum flexbility by enabling you to remove and replace the barrel.
  • Compatible with Wafer insert: 2125P1, Conventional Pin insert: 2121P1 and Reversible Pin insert: 21210P1.
  • Made from high quality materials, with a choice of finishes that provide a strong and robust product that you can rely on.
  • Available mastered or non mastered, they can be easily integrated into a new or existing system seamlessly providing full control over your security.
  • Compatible with the RONIS Ultra Track anti-tilt system.
  • Offering a 5 Pin barrel and giving you a possible 300000 combinations. Lock rotations possible are 180° Left & Right.
  • Matt Nickel finish available as standard.
  • Secured in place with a Horseshoe Clip or a Brass Nut fixing.
Reversible Pin System
Wafer System
Grand Master Key System
Anti Tilt
Removable Barrel
Profile Hole 1
Conventional Pin System

Suggested application of use

Wood Furniture, Offices, Education, Retail, Storage

Specifications

Technical features

Security Type:Wafer System, Conventional Pin System, Reversible Pin System
Available Key Series22, 2C, 2D, PR
MKS PossibilitiesGrand Master Keyed
Available Lock FixingsHorseshoe Clip, Nuts
Anti Tilt ApplicationYes
Removable BarrelYes
Standard Cam FamilyNone

Flats Body A (mm)18.00
Body Diameter B (mm)M22x1
Body Length25.60
Full Length H (mm)52.40

Optional Accessories

DOM 2121P1

DOM 2121P1

Conventional pin technology : robust and efficient
DOM 2125P1

DOM 2125P1

Wafer technology : simple and economic
DOM 21210P1

DOM 21210P1

Reversible pin technology : patented solution with high security
