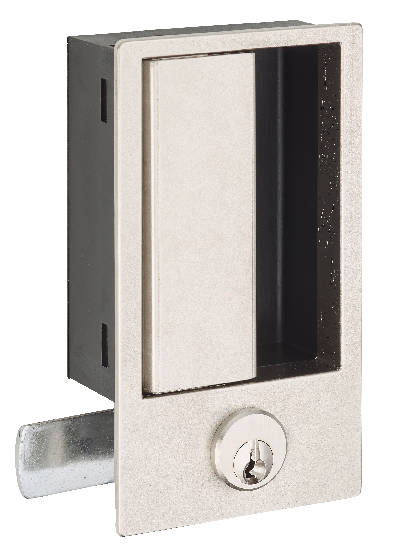

The DOM 379031 Flush handle is manufactured in Mazak. This ensures we can offer a product that is a robust and strong solution with a proven track record of offering a long life cycle. The core itself utilises Wafer Technology, providing an affordable level of security for your application. It can also be integrated into new or existing Master Key systems where required.
We offer a comprehensive range of pin cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation . The cam can be secured in place with a Brass Nut fixing.
Metal Furniture, Storage, Retail, Kiosks, Right Hand
| Security Type: | Conventional Pin System |
| Available Key Series | 22, 2C |
| MKS Possibilities | Grand Master Keyed |
| Available Lock Fixings | Snap-in Clip |
| Right Hand Door | Yes |
| Standard Cam Family | Fixed |
| Standard Finish | Matt Nickel |
| Number of Keys | 2 |

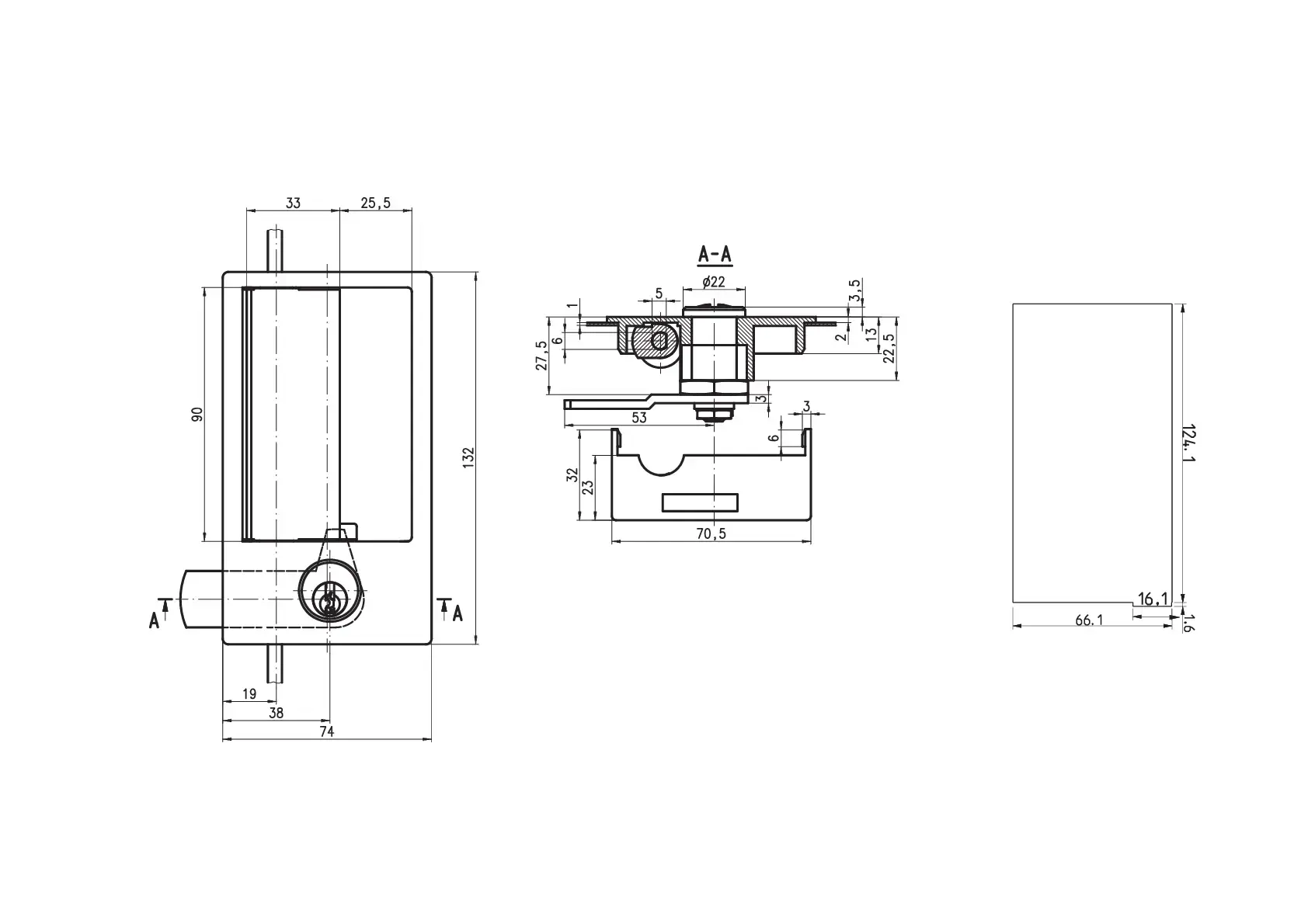

| Body Diameter B (mm) | 22.0 |
| Head Diameter E (mm) | 22.0 |
| Full Length H (mm) | 40.00 |
