The DOM Tapkey Guardian is a complete digital door handle. Perfect for areas that require a high-security, easy-to-use and attractive access control solution. Thanks to its retrofit capabilities and intuitive operations, it is particularly suitable for use in high-traffic buildings such as banks or hotels.
Hotels, Offices, Small to Medium Sized Businesses, Homes
| Fire Resistant | 30 Minutes |
| Water Resistant | No |
| Patent Protection | Yes |
| Anti Corrosion Protection | Yes |
| Standard Warranty | 1 Year |
| Communication Technology | NFC, RF 868 MHz |
| Stand-alone Functionality | Yes |
| Data On Card | No |
| Battery Lifetime Cycles | Up to 20000 cycles |
| User Identification Technology | Mifare RFID 13.56 MHz, NFC |
| Acoustic Signalling | No |
| Optical Signalling | Yes |
| Supported Locking Media | ISO 14443 A, Mifare DESFire |
| Programming Methods | Smartphone |
| Battery Type | CR2 |
| Number of Batteries | 2 |
| Battery Lifetime Years | Up to 3 Years |
| Battery Warning Alarm | Visual |
| Patent Protection | Yes |
| Patented Until (year) | 2031 |
| Ingress Protection Rating | IP52 |
| Surface Finish | Brushed Stainless Steel |
| Fixation Type | Screw on or screw through |
| Outer Knob Finish | Brushed Stainless Steel |
| Inner Knob Finish | Brushed Stainless Steel |
| Handle Types | Double Mitre, Mitre, U-Shape, U-Shape Crank |
| Power Type | Battery |
| Events Storage Capacity in the Device | 1000 |
| RFID Encryption | AES-128 Bit |
| Data Encryption | ISO/IEC 18092, AES-128 Bit |
| Operating Temperature (Celsius) | -20° to 65° |
| Voltage Range | 3V |
| Voltage Type | DC |
| Assembly Information | 3 fixations points with 2 X M5 and 1X M6 |
| Voltage Range | 3V |
| Voltage Type | DC |
Handle removal tool
Drilling template
Battery Pack
Adapter plate renovation-solid leaf
DOM Tapkey Standard Tag
DOM Tapkey Sticker Tag

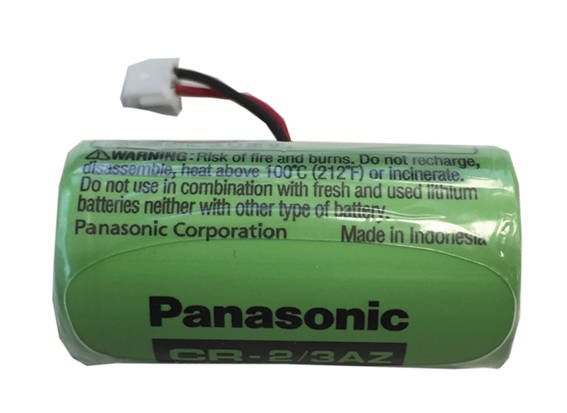

Battery Old
Installation tool set
Battery compartment key old
Handle lock asym. assembled
U-profile installation kit
Installation key covering

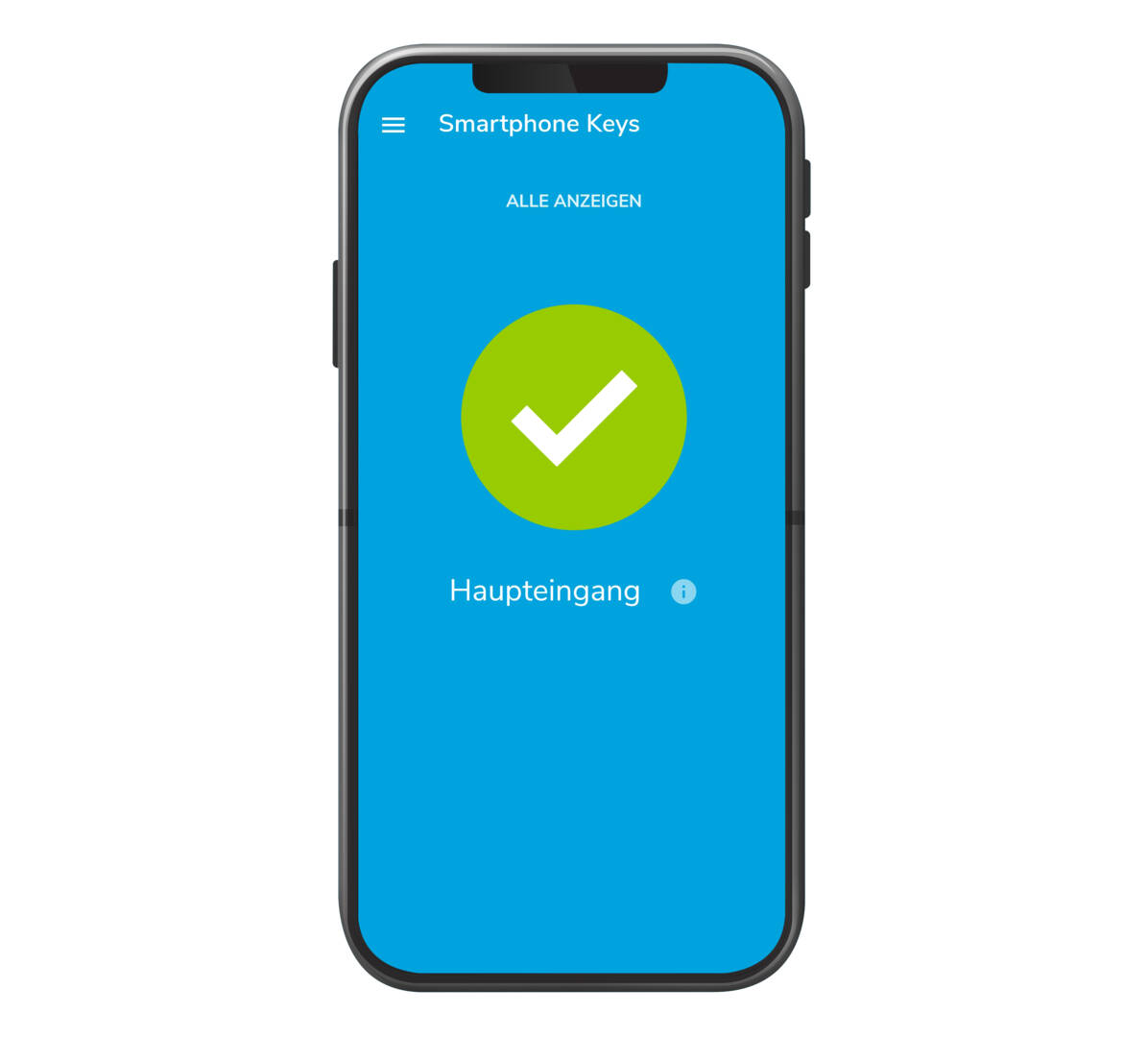

Tapkey App
