The DOM 225173 cam lock is manufactured in Brass. This ensures we can offer a product that is a robust and strong solution with a proven track record of offering a long life cycle. The core itself utilises Pin Technology, providing a medium level of security for your application.
A dust shutter will also prevent foreign objects from entering the lock and damaging the locking mechanism.
We offer a comprehensive range of pin cam locks to suit the market requirements. Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation . The cam can be secured in place with a Nut fixing.
Wood Furniture, Metal Furniture, Letter Boxes, Toilet doors, Electrical Equipment, Retail, Storage
| Security Type: | Conventional Pin System |
| Available Key Series | 2C |
| Available Lock Fixings | Nuts |
| Standard Cam Family | 225 |
| Standard Finish | Bright Nickel |
| Number of Keys | 2 |

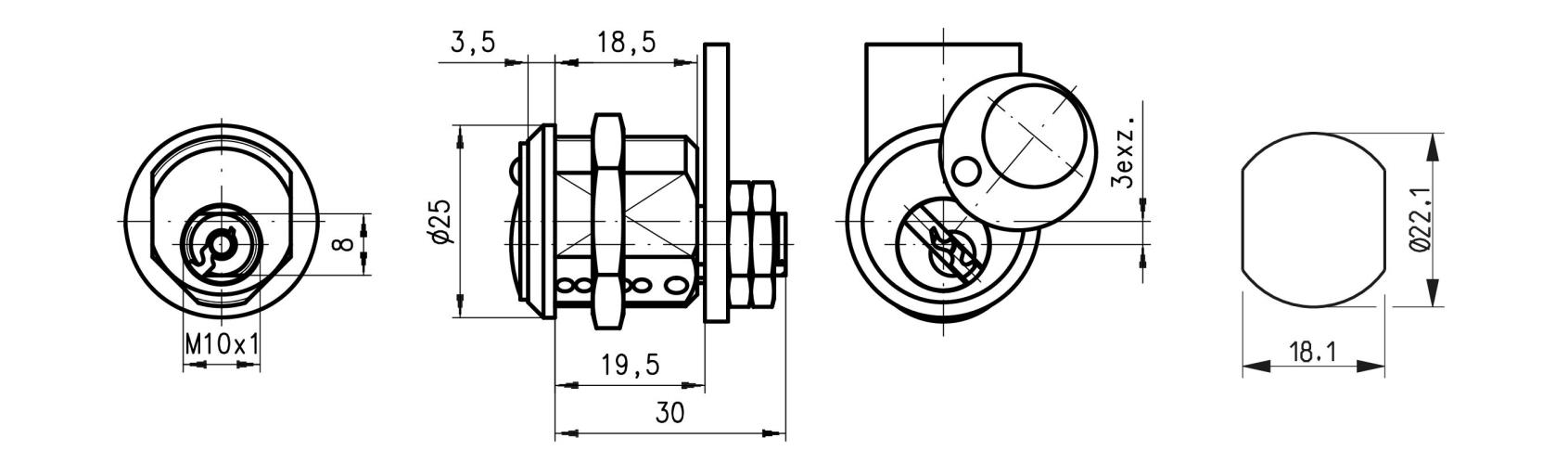

| Flats Body A (mm) | 18.00 |
| Body Diameter B (mm) | M22x1 |
| Body Length | 19.50 |
| Full Length H (mm) | 30.00 |
