The DOM 225106 is a Modular-V system offering you maximum flexibility and security. All parts from the barrel to the cam are customisable and interchangeable giving you complete control over your locking solution.
The interchangeable barrels also help save you money since the entire lock doesn't need replacing. Simply order a new core with your chosen security type and install it directly into your existing lock.
It can also be integrated into new or existing Master Key systems where required.
Depending on your assembly process, we can offer you the best suited lock fixing to ensure an efficient and effective installation. The cam is secured in place with a Circlip fixing.
Wood Furniture, Metal Furniture, Letter Boxes, Toilet doors, Electrical Equipment, Retail, Storage, Gambling Machines, Cash Machines, Ticket Machines, Transport, Energy
| Security Type: | Wafer System, Conventional Pin System, Reversible Pin System |
| Available Key Series | 22, 2C, 2D, PR |
| MKS Possibilities | Grand Master Keyed |
| Available Lock Fixings | Horseshoe Clip, Nuts |
| Removable Barrel | Yes |
| Standard Cam Family | Fixed |
| Standard Finish | Matt Nickel |
| Number of Keys | 2 |

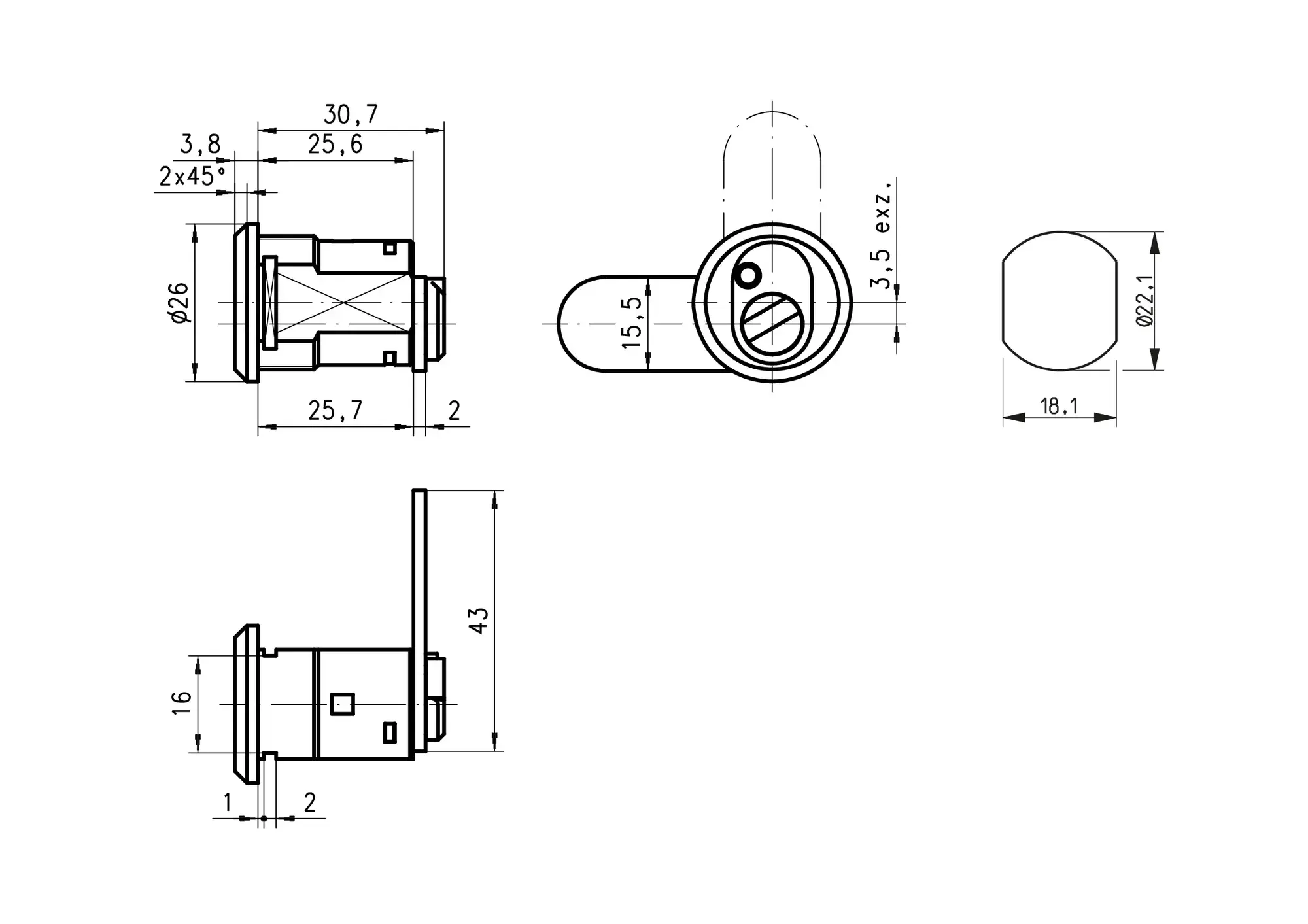

| Flats Body A (mm) | 18.00 |
| Body Diameter B (mm) | M22x1 |
| Body Length | 25.70 |
| Full Length H (mm) | 30.70 |
